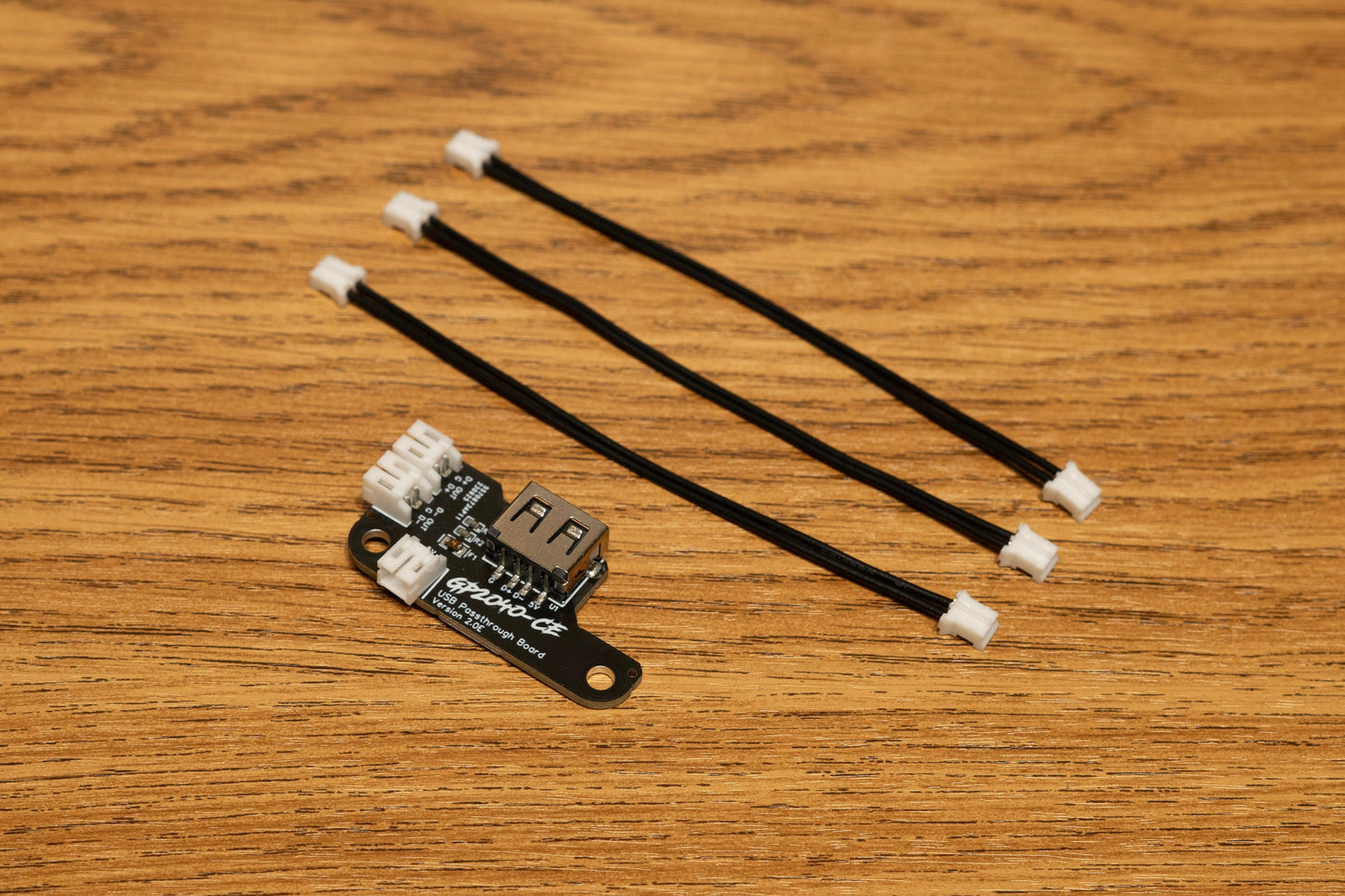

USB Passthrough Board v2.0E

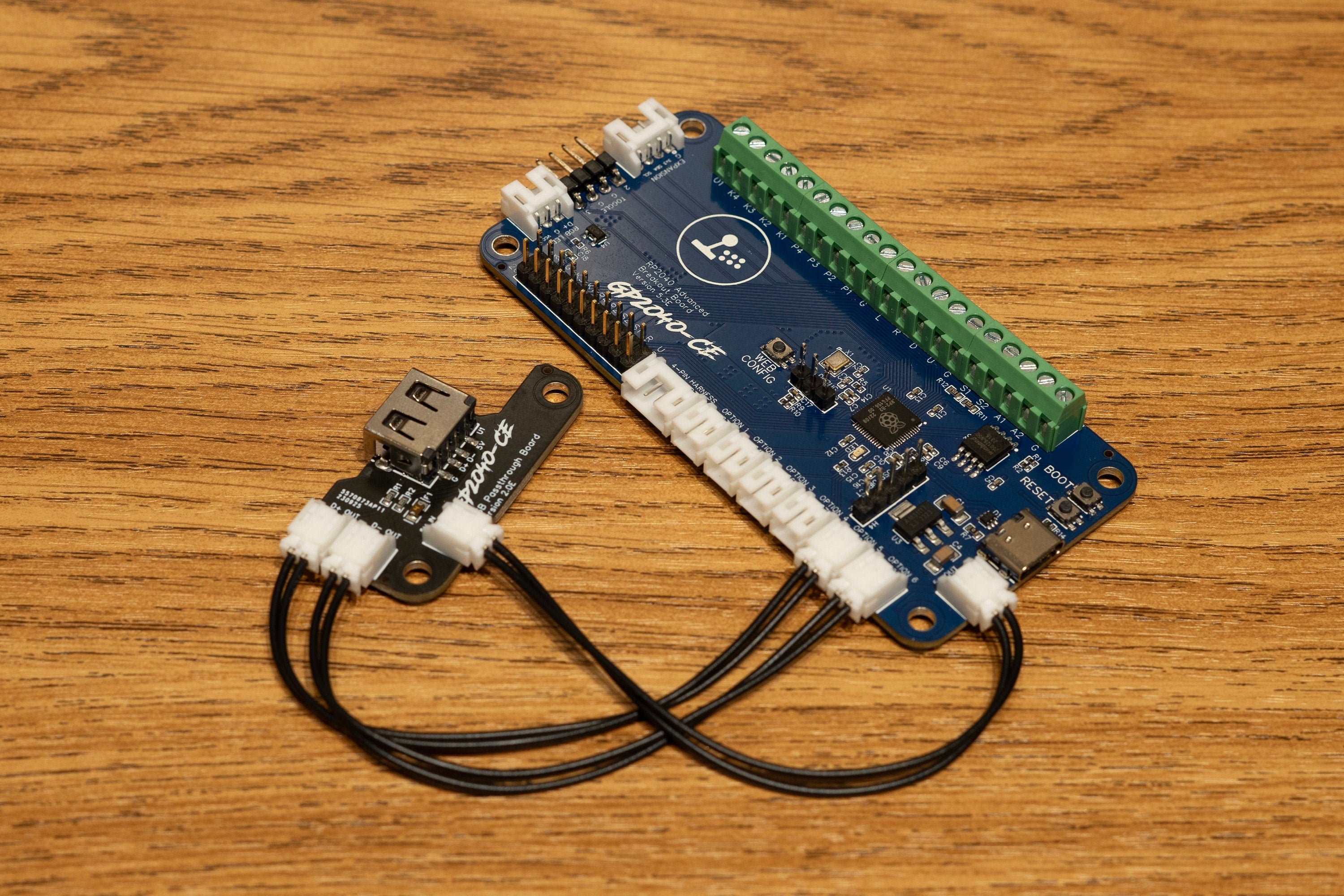

This board is designed with the Advanced Breakout Board in mind, so will sit neatly on top and connect with the 3 included JST terminated cables. It is an official board design for the GP2040-CE project. This board can also be used with a number of other designs.

Thanks to Lucifer for implementing passthrough functionality into GP2040-CE!

When connected, this board allows the use of a compatible dongle or controller for authentication with a PS4 or PS5.

NOTE: Functionality varies from game to game, but will work natively with PS4 games and select PS5 games which support the use of legacy arcade sticks.

Standoffs also aren't included as everyone's implementation will be different.

Connectors

• USB-A port for connecting compatible device to authenticate with
• 3x 2pin JST 2.00mm for D+, D-, 5v power and ground

Links

Firmware Documentation
Firmware Github repo
Hardware Github repo
Board Installation guide
