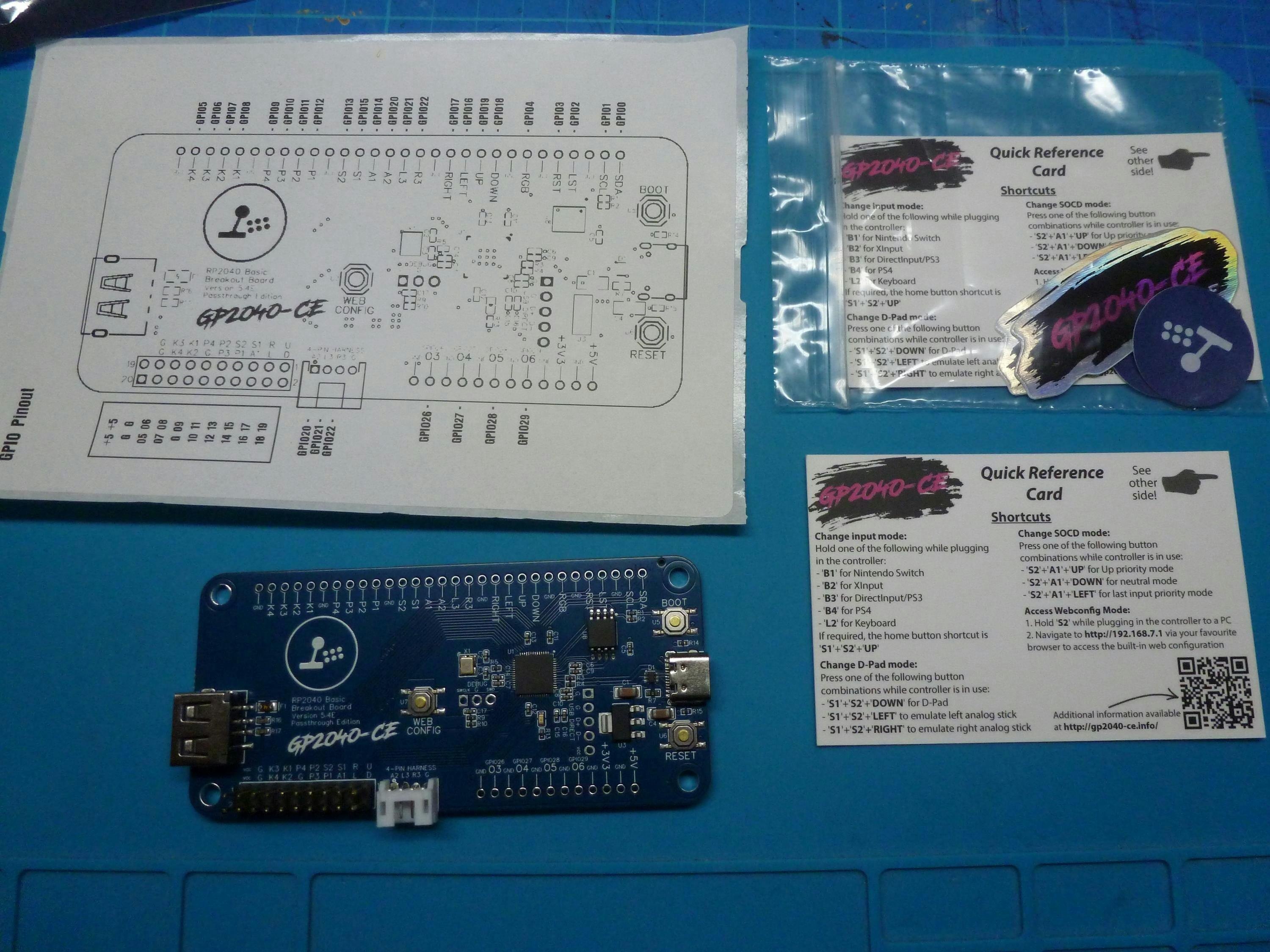

RP2040 Basic Breakout Board v5.4E - USB Passthrough Edition

This board runs the GP2040-CE firmware which is pre-flashed and runs on the embedded RP2040 controller. It is an official board design for the GP2040-CE project.

TheTrain and n-i-x designed this fully embedded design which is based on the original Pico Fighting Board by FeralAI. (Massive thanks to them!)

Features of the board

• PCB revision v5.4E
• Brook form factor to ensure it's compatibility with existing enclosures and mounts.
• USB Type-C connection (Cable not included)
• Selectable input modes - XInput, DirectInput/PS3, PS5, Xbox One and Nintendo Switch
• SOCD cleaning modes - Neutral, Up Priority and Last Input Priority
• Left and Right stick emulation via D-pad inputs
• Built-in, embedded web configuration

Please Note: The PS4 add-on will allow you to use GP2040-CE on a PS4 console with an 8 minute timeout unless keys are uploaded to the board.
**KEY FILES WILL NEVER BE PROVIDED**

PS5 and Xbox One modes require the use of a compatible USB converter to authenticate the board with a console.

Connectors

• 20pin 2.54mm for a standard Brook wiring harness which is also broken out to the screw terminals
• 4pin JST 2.00mm allowing access to A2, L3 and R3 with the use of a standard Brook harness
• Female USB Type-A port for use with a dongle for console authentication
