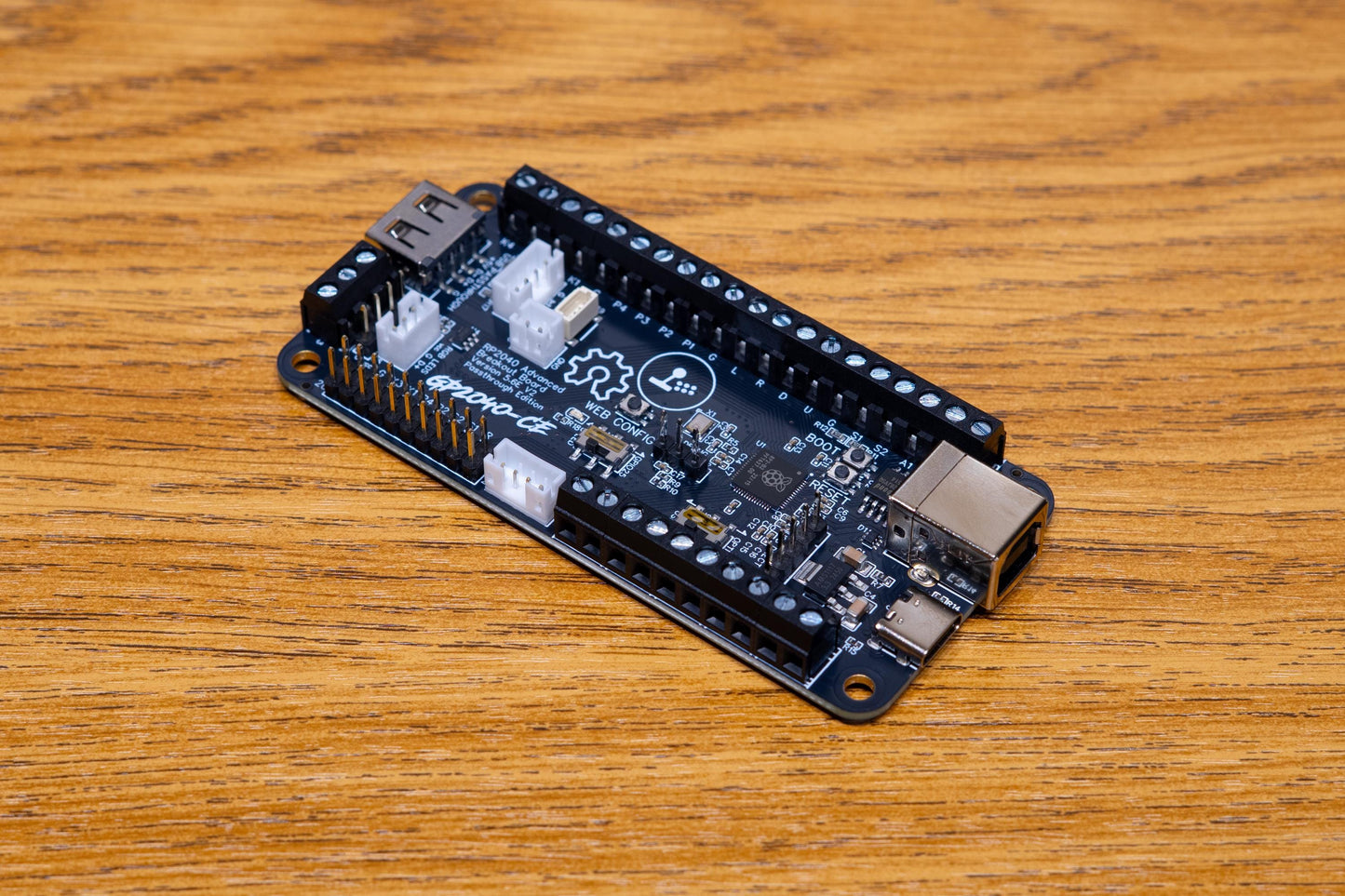

RP2040 Advanced Breakout Board v5.6E V2 - USB Passthrough Edition

This board runs the GP2040-CE firmware which is pre-flashed and runs on the embedded RP2040 controller. It is an official board design for the GP2040-CE project.

TheTrain and n-i-x designed this fully embedded design which is based on the original Pico Fighting Board by FeralAI. (Massive thanks to them!)

Features of the board

• PCB revision v5.6E V2
• Brook form factor to ensure it's compatibility with existing enclosures and mounts
• USB Type-C and Type-B ports (Cables not included)
• Selectable input modes - XInput, DirectInput/PS3, PS4, PS5, Xbox One and Nintendo Switch
• SOCD cleaning modes - Neutral, Up Priority and Last Input Priority
• Left and Right stick emulation via D-pad inputs
• Built-in, embedded web configuration

Please Note: The PS4 add-on will allow you to use GP2040-CE on a PS4 console with an 8 minute timeout unless keys are uploaded to the board.
**KEY FILES WILL NEVER BE PROVIDED**

PS5 and Xbox One modes require the use of a compatible USB converter to authenticate the board with a console.

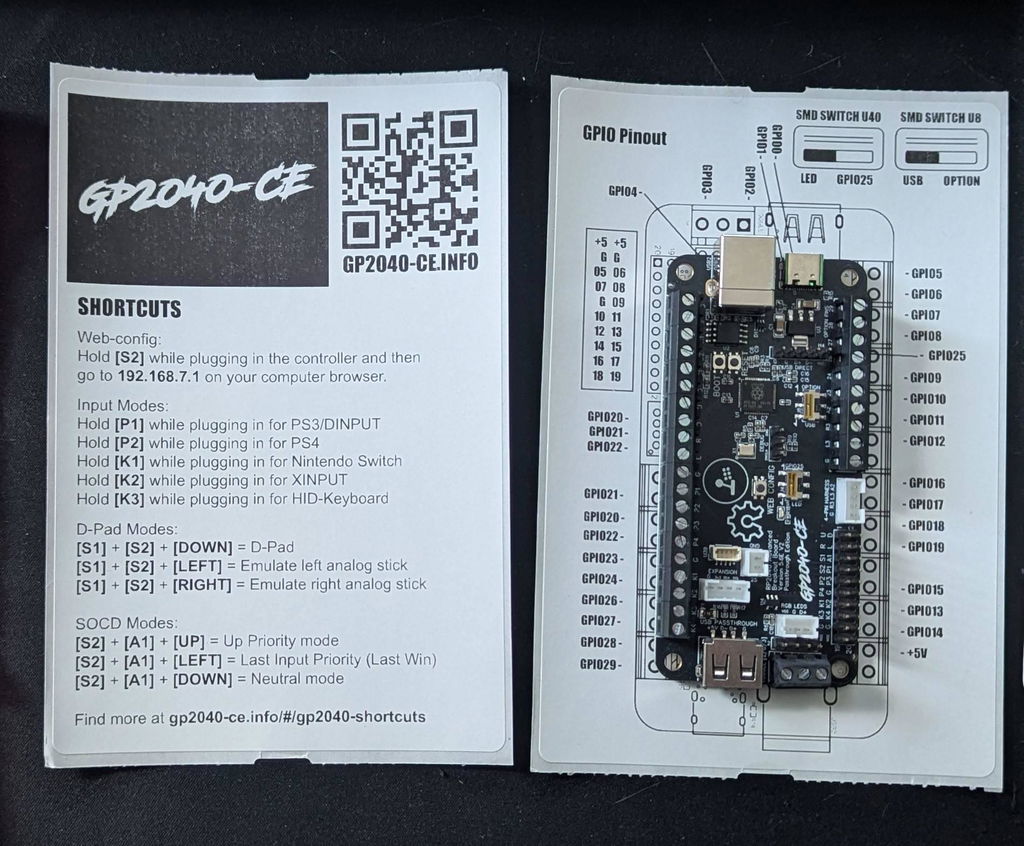

Connectors

• 20pin 2.54mm for a standard Brook wiring harness which is also broken out to the screw terminals
• 4pin JST 2.00mm allowing access to A2, L3 and R3 with the use of a standard Brook harness
• 4pin JST 2.00mm / QWIIC connector for use with a compatible OLED display or I2C add-ons
• 3pin 3.81mm screw terminal block for toggle switches for use toggling LS/DP/RS or SOCD
• 4pin 2.54mm for use with common 3 position rocker switches which have a 4pin breakout
• 3pin JST 2.00mm for addressible RGB LEDs, there is an SMD switch for switching between LEDs and or having an additional option pin avaliable
• 10pin 3.81mm screw terminal block for use with additional options in web conf
• 2pin 3.81mm screw terminal block for additional devices that require 5v power (Make sure the power draw isn't too high)
• 20pin 3.81mm screw terminal block for alternatively connecting levers and buttons instead of a 20pin harness
• 3pin 2.54mm header for debugging
• 5pin 2.54mm header for USB direct, but please note, there isn't a universal pinout for this connection so please be sure to use the exact pinout
• Female USB Type-A port for use with a dongle for console authentication, there is an SMD switch for switching between this port or Option 1 and Option 2

Links

Firmware Documentation
Firmware Github repo
Hardware Github repo
FeralAI's Pico Fighting Board
