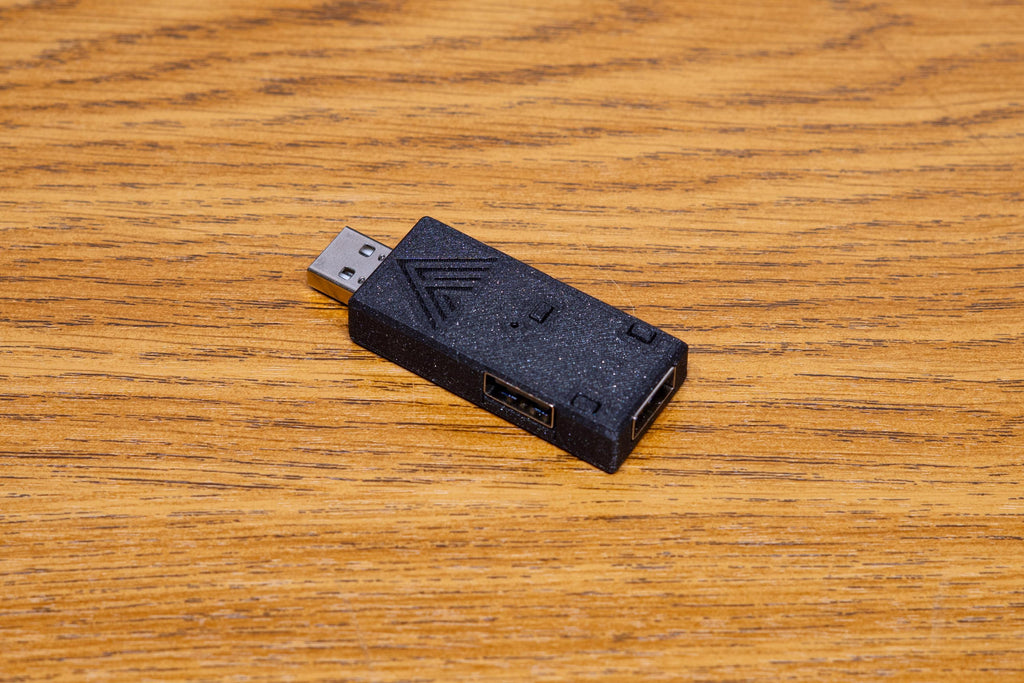

MeisterConverter - Multi-purpose USB converter

This board runs HID Remapper by default with GP2040-CE as an option, which provide lots of flexability. MeisterConverter is a programmable adapter for use with a wide range of applications. Some example use cases include:

• Using a keyboard as a leverless controller, even on a Playstation 5 (requires optional authentication dongle).
• Using MIDI controllers as input devices.

Alpenmeister over in Germany designed this fully embedded design with the goal to keep it as compact and affordable as possible!

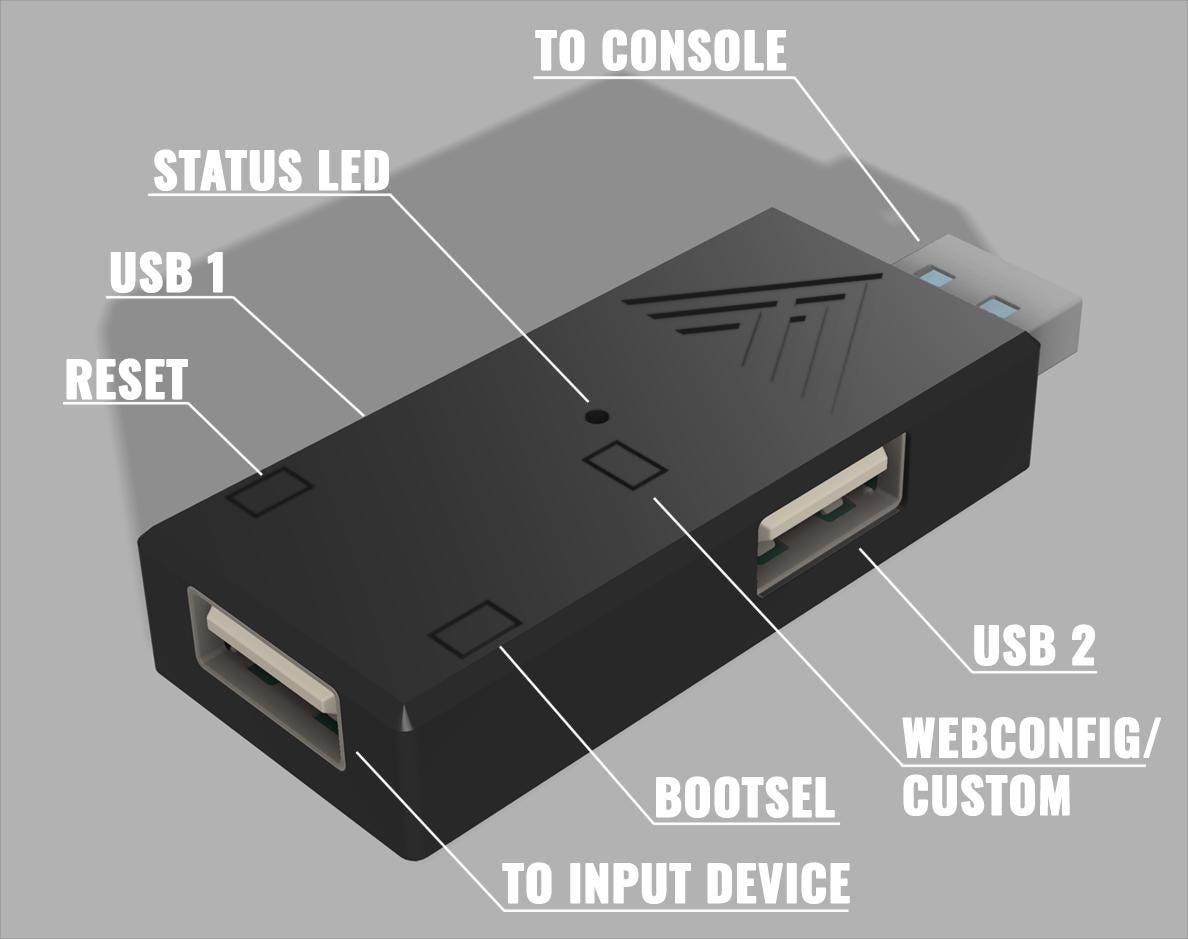

Features of the board

• PCB revision v1.2
• USB Type-A output
• USB Type-A input x3 via inbuilt hub
• Selectable input modes
• Remap inputs from a mouse, keyboard or another device
• Web configurator (for HID Remapper)
• Built-in, embedded web configuration (with GP2040-CE)

Updating firmware

1. Download the latest firmware release
2. Restart the board
   1. While plugged in, you can press the on-board 'Reset' button while holding the on-board 'Boot' button
   2. Or unplug the board and hold the on-board 'Boot'' button while plugging back in
3. A new removable drive will appear named "RPI-RP2"
4. Drag and drop the firmware file downloaded previously onto the drive
5. The firmware will now flash and the drive will disconnect

Please Note: If you are having issues with the above, please download and flash 'flash_nuke.uf2' using the same steps to wipe the controller, then attempt the update again.

Links

Firmware Documentation:
https://www.remapper.org
https://gp2040-ce.info

Firmware Github repos:
https://github.com/jfedor2/hid-remapper/releases
https://github.com/AlpenmeisterCustoms/GP2040-CE/releases

Hardware Github repo:
https://github.com/AlpenmeisterCustoms/MeisterConverter
